Laser cutting and etching

  • Writer: Ryan Redenbaugh
    Ryan Redenbaugh
  • Jun 28, 2016
  • 1 min read

Bamboo, walnut, and acrylic etching board creates a high-end look or an educational product just by replacing the top overlay. The 6x6 housing holds a Raspberry Pi, hard drive, dragon cable for power, and dongles that connect your mouse/keyboard.

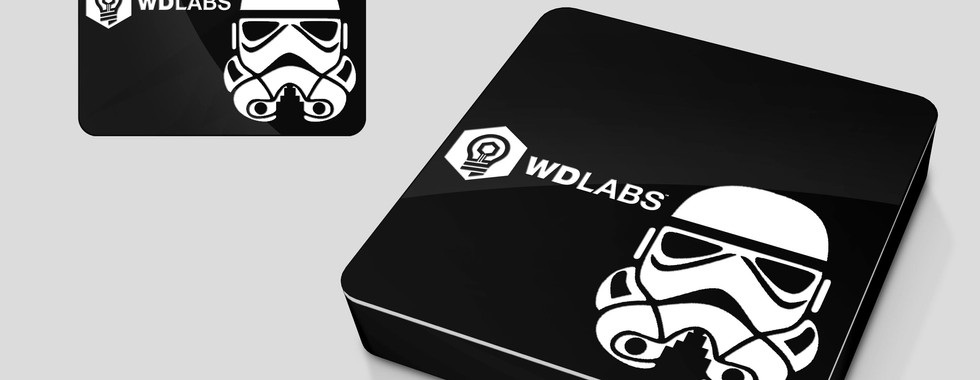

All adhesive tops for the standard 6x6 PiDrive enclosure

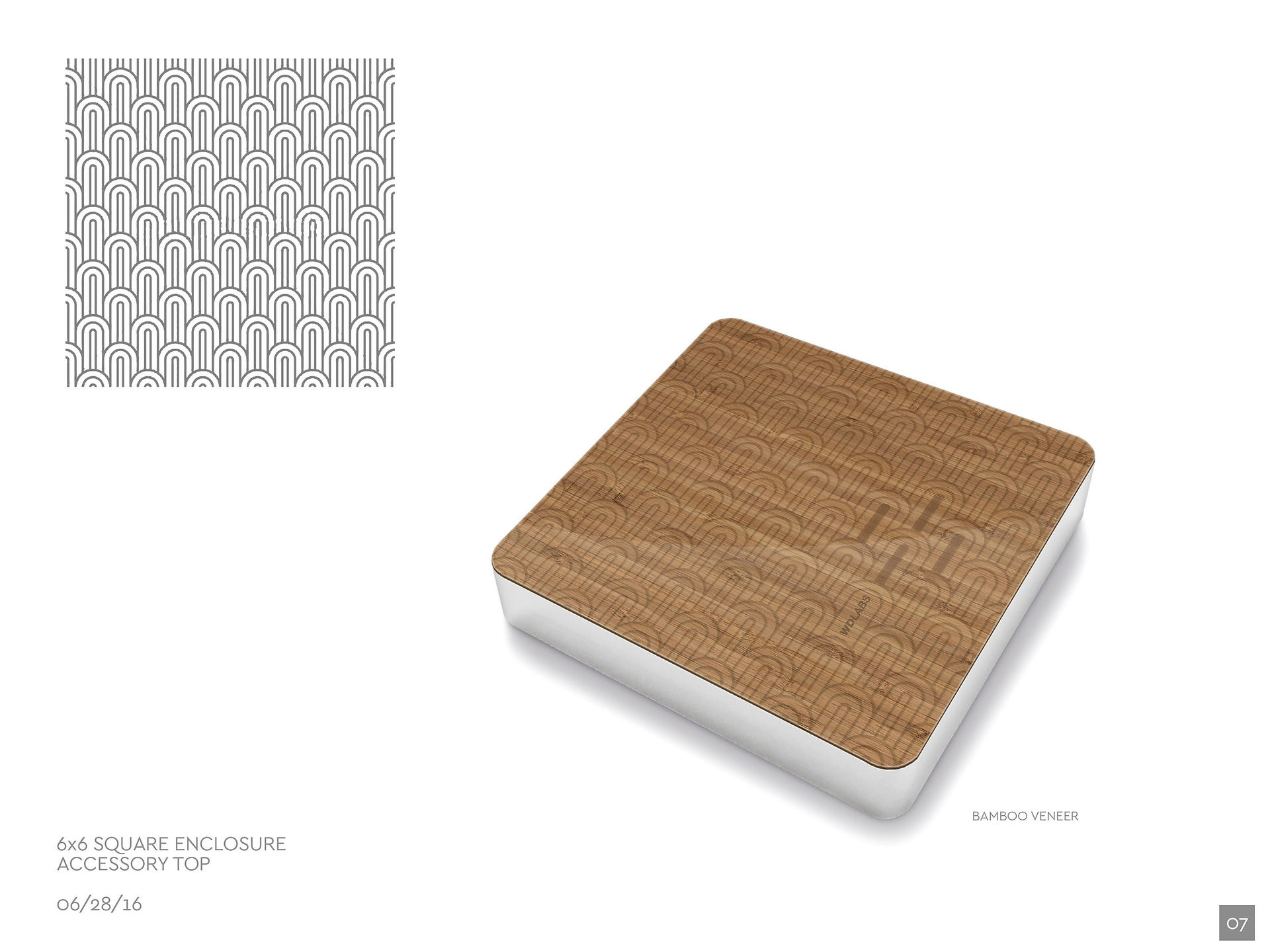

Below are the concept renderings for the laser etched veneer version and the educational acrylic version





Production parts - white acrylic back with thin acrylic top that has been laser etched

Production packaging on left and samples showing material choices and etching depths

Concepts for the same 6x6 enclosure that hangs on a wall and laser but bamboo half tops

Ryan
